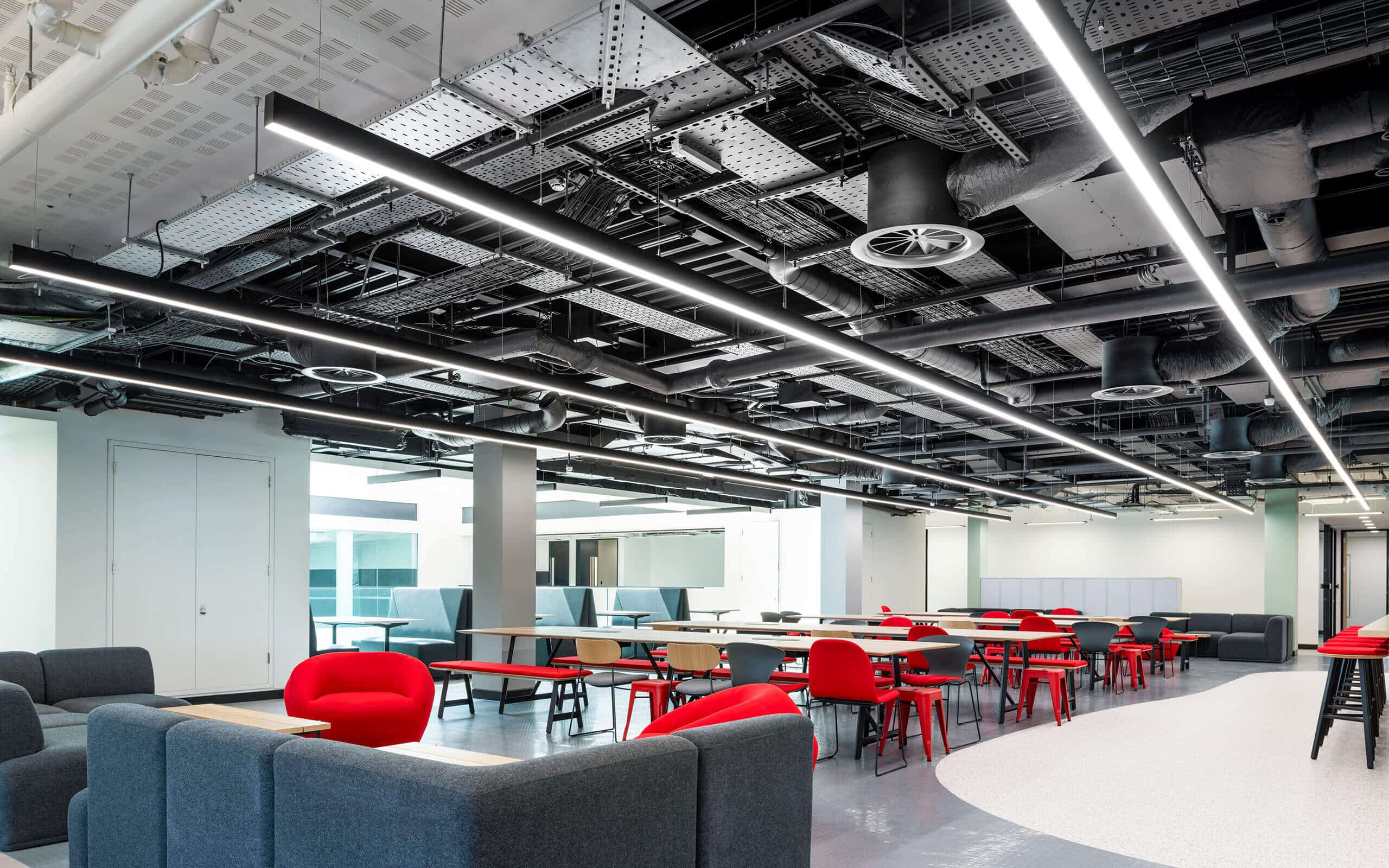

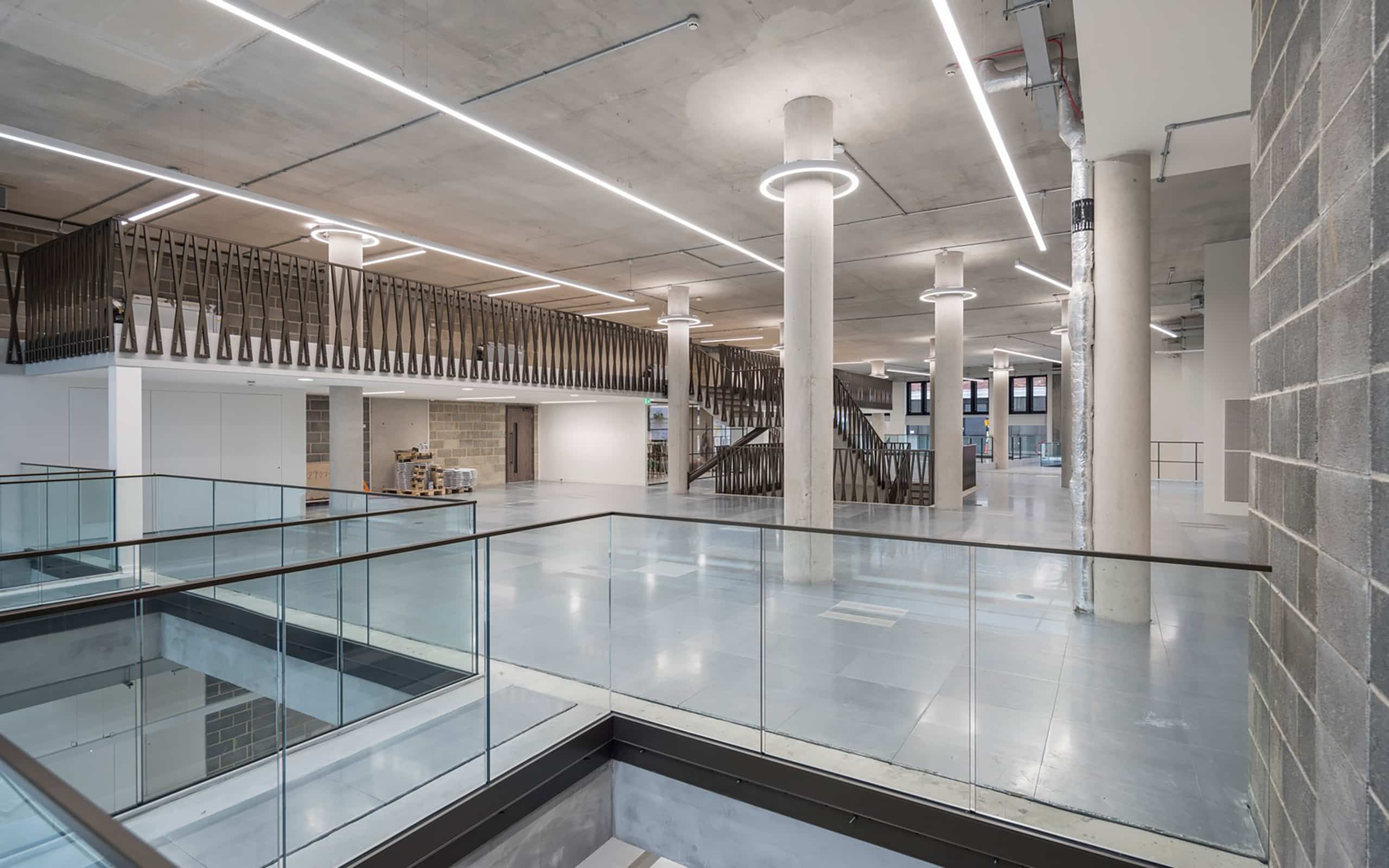

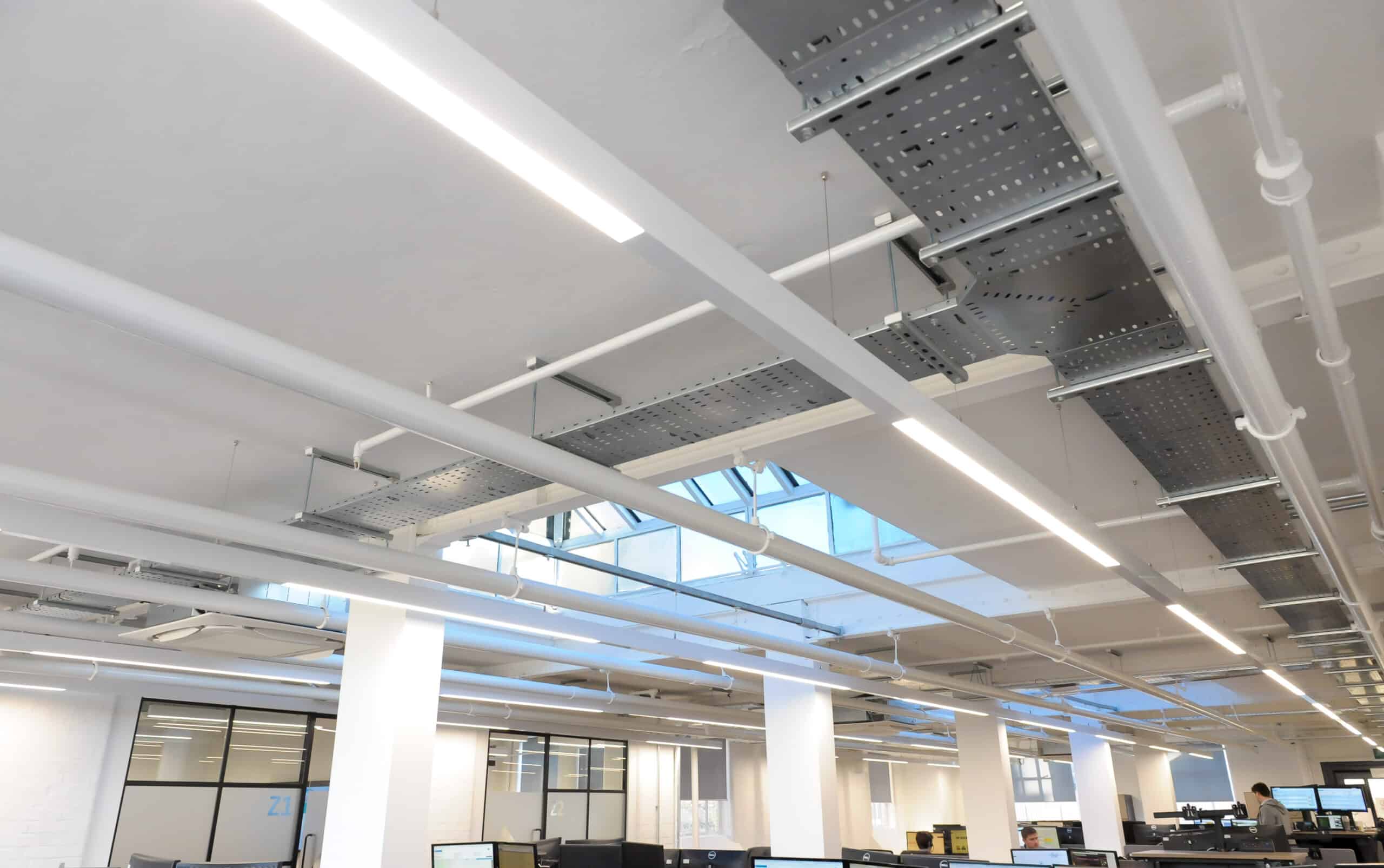

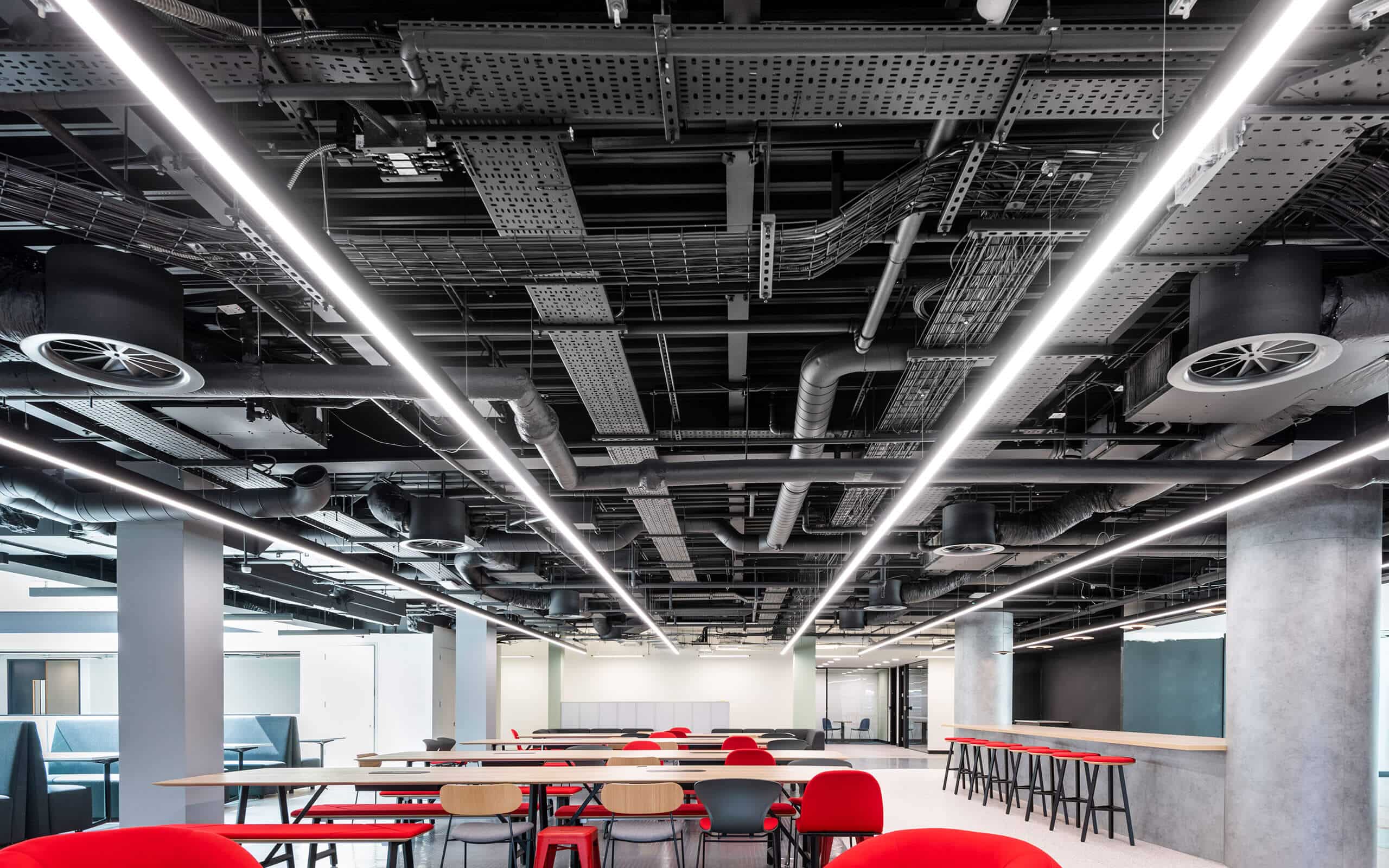

M-Line’s sleek aluminium profile can be adapted to form many lengths of linear bespoke lighting. Corner sections are fully lit to enhance the visual impact that continuous lighting creates. Suspended and wall-mounted systems can be supplied to incorporate direct/indirect lighting options with dual switching available.

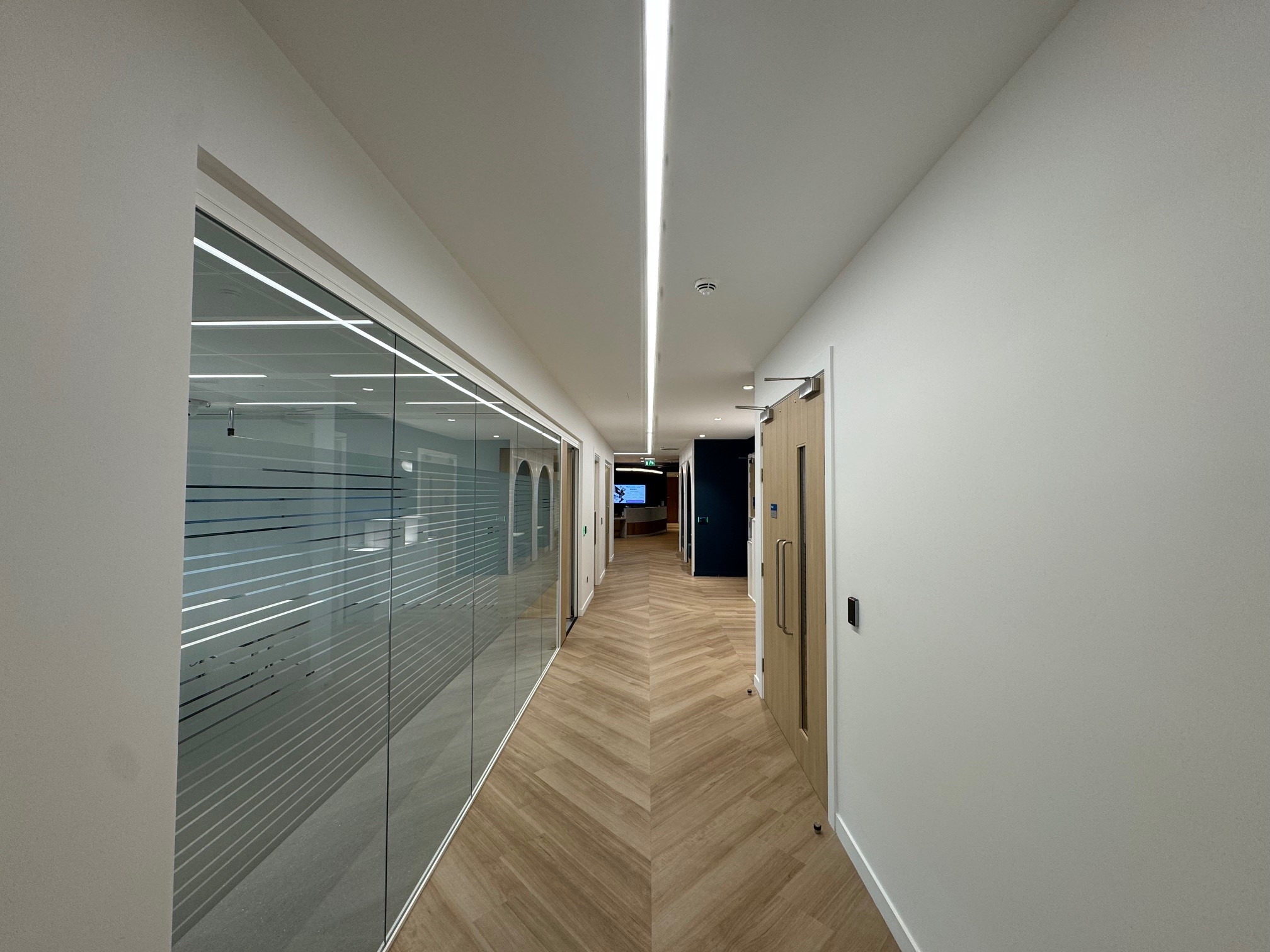

The system can also be surface mounted or recessed in both ceilings and walls and has a plethora of control options.
| Section | Option Code | Description |
|---|---|---|
| 1 – EMERGENCY | Leave blank if no emergency | |
| /M | Emergency | |
| /MZ | DALI Emergency | |
| 2 – CONTROL | /ND | Non Dim |
| /DA | DALI Dim | |
| /BTC | Casambi Dim | |
| /2DA | Dual Channel DALI Dim (Suspended only) | |
| /2BTC | Dual Channel Casambi Dim (Suspended only) | |
| 3 – FINISH | /9016 | RAL9016 White |
| /9005 | RAL9005 Black | |
| /RA | Any RAL Colour | |
| 4 – CCT | /4K | 4000K |
| /3K | 3000K (light output -6%) | |
| /5K | 5000K | |
| 5 – CRI | /80 | CRI>80 (typical 84) |
| /90 | CRI>90 |
